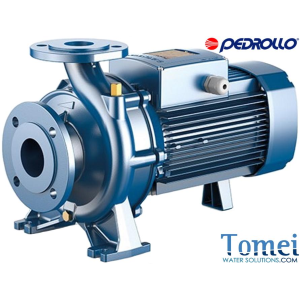

Made in Italy Centrifugal pumps close coupled and standardized F 32/200C 5,5 HP
| Price: | €1.254,50 VAT included (22%) |
|---|---|
| Freight costs: | FreeDetails |
| MPN: | 4FN32203CA |
| EAN: | 8052230033558 |
| GPSR Compliance: | Details |
| Availability: | Available Handling time: 2 days |
| Quantity: |
Users feedback
Description

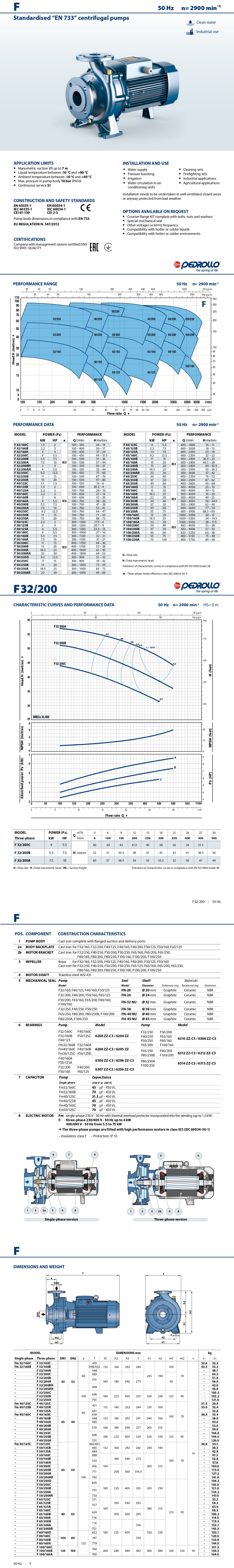

Technical details
| Model | F 32/200C |
| Power | Three-phase |
| kW | 4 |
| HP | 5,5 |
| Flow Rate Q [l/min] | 100 ÷ 450 |
| Head H [m] | 44 ÷ 31,5 |
| DN1 | 50 |
| DN2 | 32 |
| Pump body | Cast Iron |
| Impeller | Brass |
Description
Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications.
The pumps must be installed in enclosed places, or at least protected against inclement weather.
Features
Liquid type: Clean Water
Uses: industrial
Applications: irrigation pumps, cooling systems, air conditioning systems, washing systems, water supply systems, fire-fighting sets, pressure systems
typology: surface
Family: standardized centrifugal pumps
Application Limit:
Temperature of the liquid from -10 °C to +90 °C
Ambient Temperature da -10 °C to +40 °C
• Manometric suction lift up to 7 m
• Max. pressure in pump body 10 bar (PN10)
• Continuous service S1
